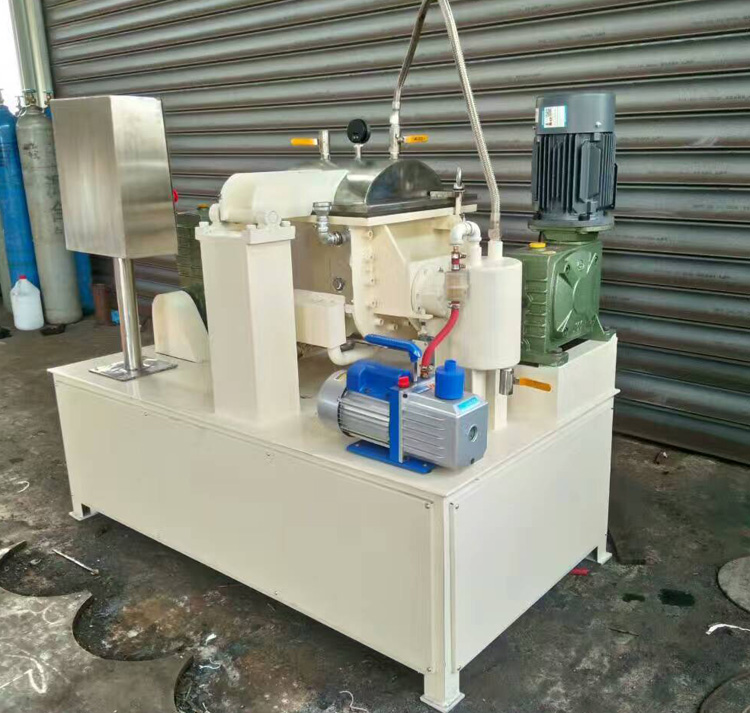

5LVacuum Kneading machine

Vacuum Kneading machine is widely used in high viscosity，high elastic plastic materials mixing，kneading，crushing，mixing，repolymerization etc..Kneading machine has uniform mixing，no dead angle，the kneading efficiency etc..Applications：sealant，silicone rubber，silicone rubber，glass，silicone，gasket gum，modified starch，chewing gum，bubble gum，pulp，cellulose，battery，ink，pigment，dye，medicine，resin，plastics，rubber，cosmetics，CMC,adhesives and other industries. Our company process requirements，can be made of vacuum，pressure and pressure three types，the heating is a jacket，steam and electric heating method.Discharging a hydraulic double cylinder，valve and screw etc..

Main Application:
1.Kneading Mixer can be widly used in Chemical,Plastic,Rubber,Printing-ink,Carbon,Medicine,Food Industry.

2.The part which contact material is made by Stainless Steel or Cast Steel,can insure the Purity and Quality of the product.It takes “Z” shapes double blades,can insure the material rapidly react,evenly mix.

3.Kneading Mixer mainly including Three Kind:Ordinary Type,Pressure Type,Vacuum Type.

4.Heating eay is generally Electric Heating and Steam Heating.

5.Discharing ways is :Hydraulic dumping up cylinder Type;Ball valve Discharge Type;Screw extrusion Type.

Structure Feature and Working Principle:
Start the motor,add the material,after adding material,clean the foreign matter on the cylinder port.It takes Hydraulic Dumping up cylinder Discharge the material,it is rapid and clean to discharge.

D:Lubricition System:
1:Gear Reducer:According to the lubricating oil according to practical application.
2:Like Bearing,Overturn turbin box,operate about 500 hours add lubricating oil.
3:Other parts according to practical situation.

Test run and Preparation of before operation:

1:After the Installation,firstly proceed Cleaning, Decontaminate and add antirust grease.Check every lubricating part then add lubricating oil.
2:Before operating,check the Up-tight Degree of triangle belt.
3:Check the fastening piece if loose’Circuit and electrical equipment if safe.

4:Before test run should insure the Kneading room is clean.Keep machine Idling about 10-15 minutes.After insuring machine is in normal operation then put the material into production.
