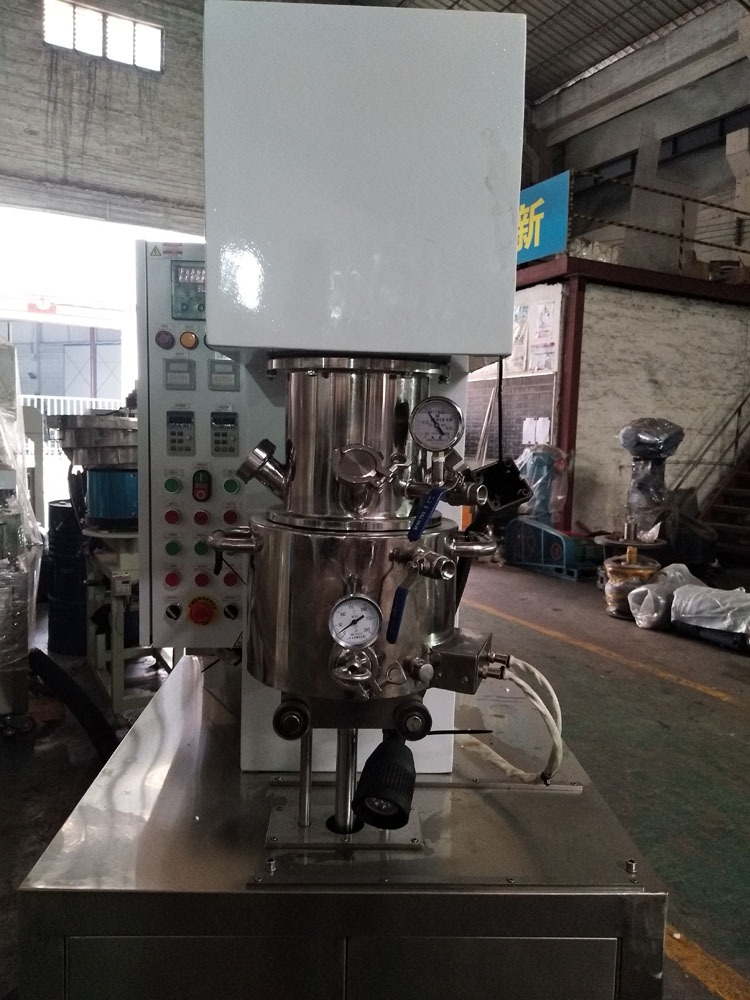

5LPlanetary power mixer

Longmen type planetary power mixer / multi-functional planetary mixer is a kind of no dead point of mixing dispersion equipment This equipment set planetary machine，strong dispersion machine functions in one，a unique mixing mechanism，material barrel is fixed；dispersion plate，stirring paddle to achieve both revolution and rotat on of planetary motion its speed can be FM transmission. The material for complex motion，affected by the strong shearing mixing and twisting the material can be fully mixed and broken. ln the inner part of the kettle wall automatic scraping，scraping the bottom structure，will adhere to the xessel wall on the material scraping continues to mix，not mixing angle. Unique equipment sealing，pressure or vacuum to bubble.

   Power mixer is widely used in chemical，food，pharmaceutical，building materials industries such sa solid solid，solid-liquid，liquid-liquid mixing，reaction，dispersion，emulsification，homogenization process .ls adhesive，sealant，silicone rubber，silicone rubber，silicone，electronic adhesive，epoxy pouring sealant，adhesive，ointment，lithium battery size.electrode paste，paste material，grease. Oil，cream cosmetics，cream，paste food additives production and the ideal equipment，mixing equipment.

working principle:The Planetary Power Mixer is equipped with a low-speed agitator and a high-speed distributive. The low-speed agitator is driven by a planetary gear. The agitator also rotates on its own revolution, allowing the material to move up and down and all around. This achieves the desired mixing effect in a short period of time. High-speed dispersive parts and planet carrier with revolution, while high-speed rotation, so that materials are subject to intense shear and dispersion mixed, the effect is several times the average mixer. Dispersed shaft single double-dispersion axis, customers can choose according to need. The mixer rotates and rotates at the same time in the barrel body, which can realize the vacuuming, heating and cooling, and the speed adjustment can be realized according to the situation, and the machine can be operated with one or more barrels with multiple mixing drums, matching the hydraulic discharging machine to make discharging more convenient.
